Our Infrastructure

Complete Forging Ecosystem Under One Roof

From billet preparation through forging, heat treatment, machining, and final inspection. Every process capability is available in-house, giving you total speed and control.

FORGING LINES

Press & Hammer Equipment

4000T Hydraulic Press

4000T Hydraulic Closed Die Press

Our largest press delivers maximum forming force for complex, near-net-shape closed die forgings in high-alloy and stainless steels.

Capacity: 4000 Tonnes
Stroke: 1000mm
Max Billet Weight: 80kg
Materials: Carbon, Alloy, Stainless Steel
2500T Hydraulic Press

2500T Hydraulic Press

Mid-range press for medium-section automotive and structural forgings with high dimensional repeatability.

Capacity: 2500 Tonnes
Stroke: 800mm
Max Billet Weight: 40kg
Materials: Carbon, Alloy Steel
3T Pneumatic Hammer

3000kg Pneumatic Hammer

High-energy drop hammer for open and closed die forgings requiring heavy reduction in a single heat, ideal for long-form components.

Ram Weight: 3000 kg
Blow Energy: 160 kJ
Max Billet Weight: 50kg
Materials: Carbon, Alloy Steel
1000T Hydraulic Press

1000T Hydraulic Press

Dedicated to smaller, precision-critical forgings requiring tight tolerances and minimal flash. Used heavily for automotive fastener and fitting production.

Capacity: 1000 Tonnes
Max Billet Weight: 8kg
Tolerance Range: ±0.3mm
Materials: All standard grades
THERMAL PROCESSING

Heat Treatment Equipment

Continuous normalising furnace

Continuous Normalising Furnace

Belt-fed continuous furnace for high-throughput normalising and stress relieving of forged components immediately after forging.

Temperature: Up to 1000°C
Capacity: 1200 kg/hour
Atmosphere: Controlled endothermic
Quench and temper furnace

Quench & Temper Batch Furnace

Batch furnace with integral quench tank for hardening and tempering to achieve specific mechanical properties per material standard.

Temperature: Up to 950°C
Batch Capacity: 800 kg
Quench Media: Water / Polymer / Oil
FINISH MACHINING

CNC Machining Centres

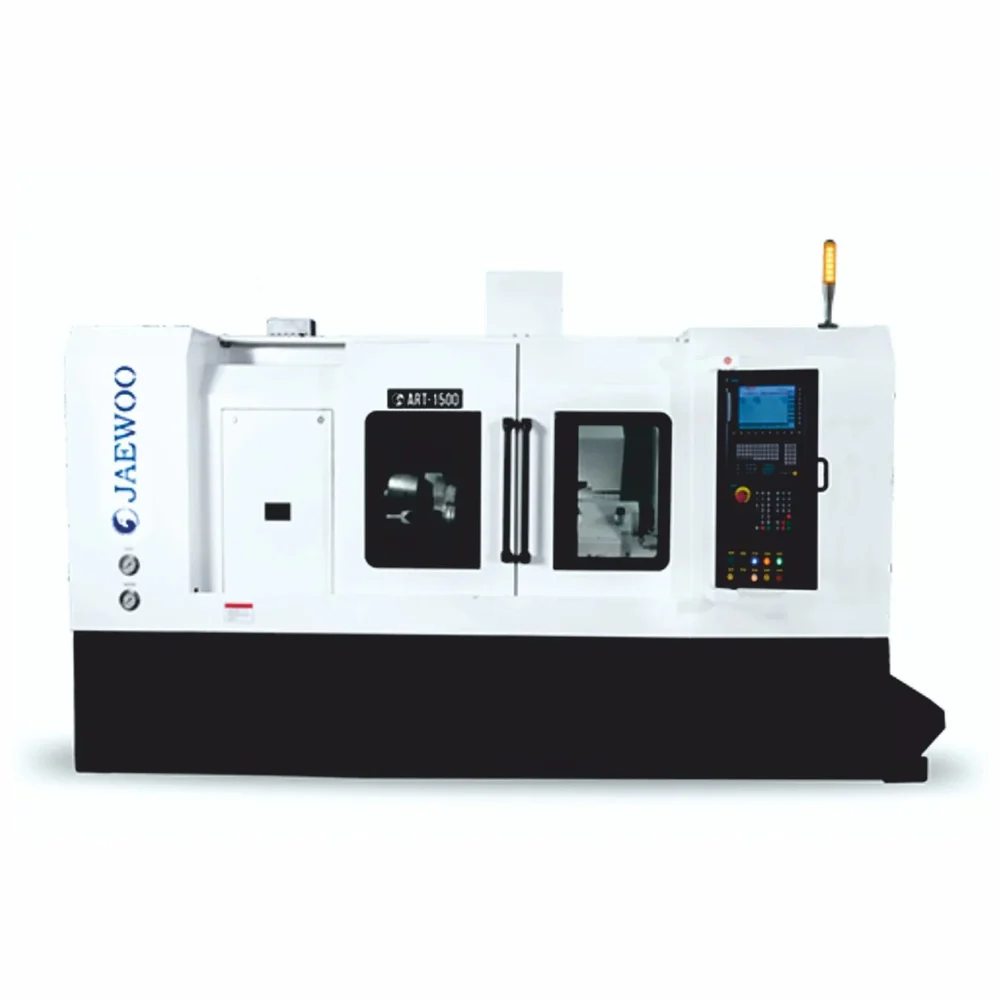

CNC turning centre

CNC Turning Centres (6 machines)

High-speed turning centres with live tooling for complete turned-and-milled operations in a single setup to reduce fixturing errors.

Max Diameter: 450mm
Max Length: 1200mm
Tolerance: ±0.01mm
VMC machining centre

Vertical Machining Centres (4 machines)

Full 3-axis VMCs for milling, drilling, boring, and tapping complex forging profiles to finished dimensional specification.

Table Size: 1000 × 500mm
Spindle Speed: 12,000 rpm
Tolerance: ±0.02mm
Quality Assurance

Inspection & Testing Laboratory

3D CMM Inspection

Zeiss CMM for full 3D dimensional verification against nominal CAD geometry. High-precision measurement for critical forging tolerances.

NDT. Magnetic Particle

Wet fluorescent magnetic particle inspection (MPI) for surface and sub-surface crack detection on all ferromagnetic forgings.

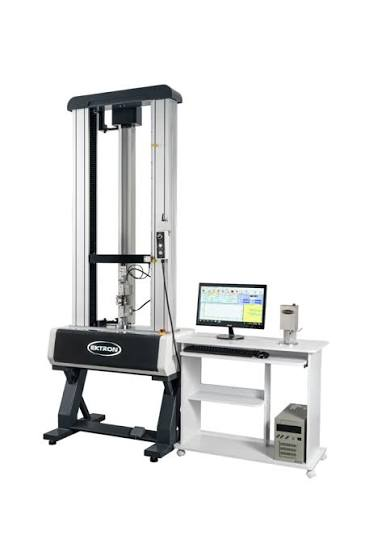

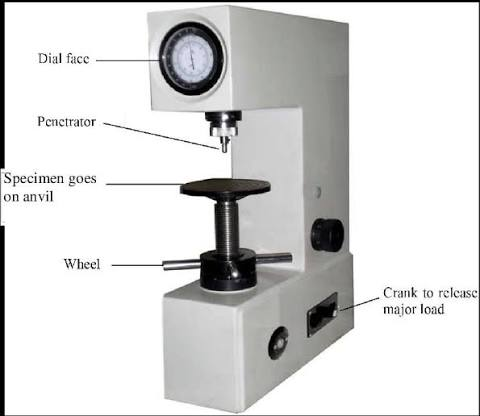

Mechanical Testing

Tensile, hardness, and impact testing. We ensure 100% documented traceability and material compliance before dispatch.

Need a Specific Process Capability?

Talk to our engineering team about your component requirements. We'll confirm process fit and capacity.
